Control Station Robo Command

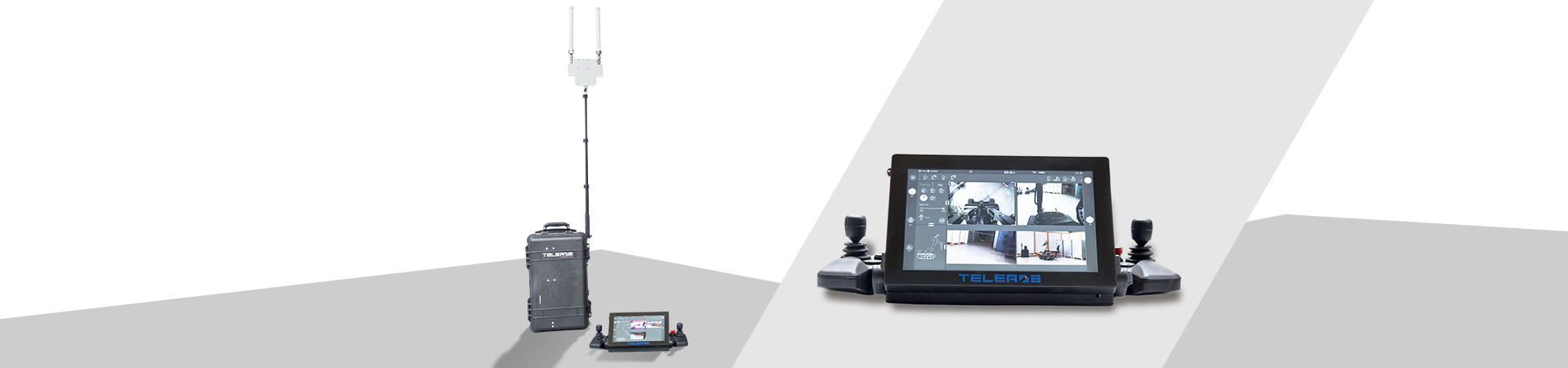

The modern control station ”Robo Command“ allows a uniform operating concept for the EOD robot tEODor EVO and all models of the telemax EVO family. Thus, operations of all robots within a fleet can be done via just one Robo Command, permitting multi-robot operation. The control station is comprised of a communication unit, a controller and associated radio equipment.

The communication unit is made up of a hand-luggage-sized PELI case. During transport, the case not only houses the controller, but also the radio components, the telescopic mast, a power supply unit and the electronics for the communication unit including a battery. When in use, the telescopic mast is affixed to the communication unit along with the radio components, enabling the antennas to reach a height of approximately 1.8 m (5.9 ft) when extended. The communication unit offers several connections: such as a PSU connection, an ethernet connection with PoE and a voltage connection.

The controller consists of a multi-touch screen and two lateral operating blades, each fitted with a 3-axis joystick and a control pad. Both the operating interface and the video streams transmitted by the camera(s) are shown on the multi-touch screen, providing a quick and complete overview of all the information and functions. The set-up of the user interface is self-explanatory and permits intuitive operation based on the applications we’re all familiar with from the world of tablets and smartphones.



Features

  • Uniform operating concept for EOD robot tEODor EVO and the whole telemax EVO family
  • Modern state-of-the-art controller with multi-touch screen and ergonomic design
  • User interface and display of multiple camera images together on one large screen
  • Settings and functions are accessible within two clicks
  • Advanced functionality for power users
  • Mast mounted IP mesh radio
  • Soon to come: multi-robot operation
  • Soon to come: MPU5 IP Mesh radio


Image Gallery




Benefits

  • Controllers, interface units and radio equipment are interchangeable with each other within one fleet of robots
  • Intuitive operation, based on applications known from tablets and smartphones
  • Quick and complete overview of all information and functions
  • Easy navigation through the entire menu
  • Fast access to frequent and important functions via a control pad
  • Optimum transmission and reception characteristics
  • Choice of various radio systems
  • Operation of several robots within a fleet via just one Robo Command


Click here to download the Robo Command data sheets.

If you have any further questions, please do not hesitate to contact us.
